GDS® Desktop Dock with Power Delivery & Peripheral Port
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Single desktop dock designed for docking and charging devices wrapped in IntelliSkin® and IntelliSkin® Next Gen protective sleeves
- Power Delivery and data sync via integrated 1m long USB Type-C male cord and included USB 2.0 Type A port for peripheral connection such as a keyboard, hub, scanner and more
- Power output of 9V @ 1.67A max
- Backed by a 3-year warranty

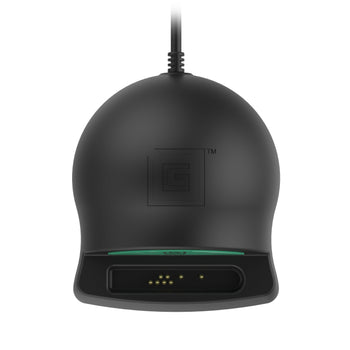

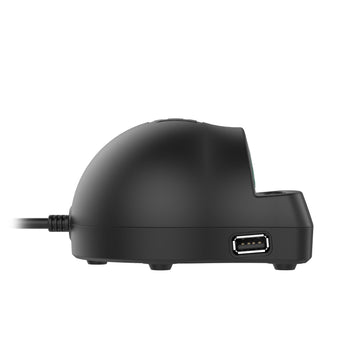

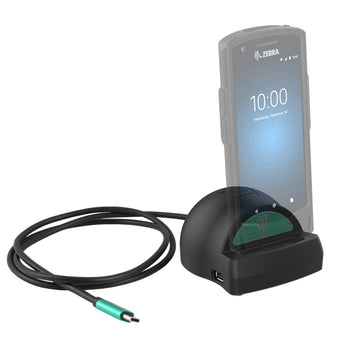

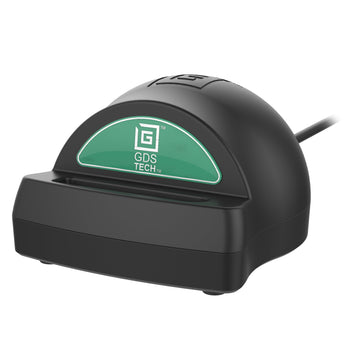

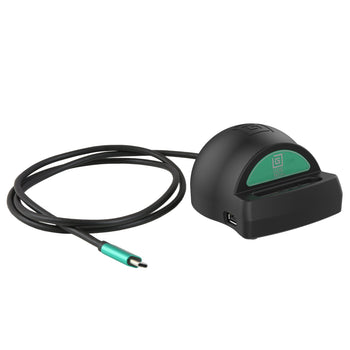

This single GDS® Desktop Dock with Power Delivery and data sync is a low-profile docking and charging station for phones and small tablets wrapped in an IntelliSkin® protective sleeve. Take advantage of the USB Type-A port on the side of the dock for peripheral add-ons to turn the desktop dock into a workstation using a keyboard, mouse or other peripheral. The desktop dock features pogo pin contacts designed to match the pogo pads on IntelliSkin®-wrapped devices supporting USB Type-C charging profiles. A USB Type-C charging cable plugs into the back of the dock with a power output of 9V @1.67A max. This dock will support all USB Type-C devices wrapped in both IntelliSkin® and IntelliSkin® Next Gen devices. Always Protected. Always Connected.®
product dimensions
Overall Width: 3.66"
Overall Height: 2.54"
Overall Depth: 4.21"
materials
High strength composite
packaging type
Retail Box
output voltage
9V @ 1.67A
Peripheral: 5V @ 0.5A
input connector
USB Type-C Male
input cable length
1 Meter
transfer speed
Up to 480Mbps
ports
USB Type A (Peripheral Support)
Warranty
3 year warranty
Weight
0.659 kg
