GDS® Uni-Conn™ Non-Locking Spring Loaded Power + Single USB-A Dock
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Swipe to see more images.
Features

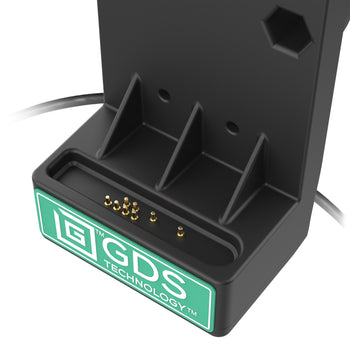

- Spring-loaded dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™
- Backed by a 3-year warranty

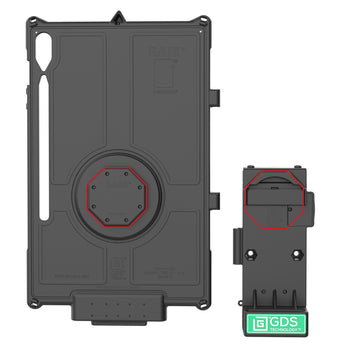

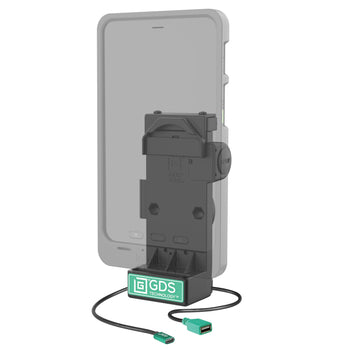

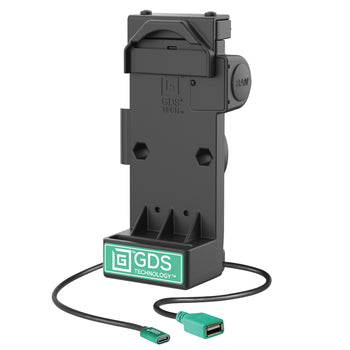

The GDS® Uni-Conn™ Spring Loaded Power + Single USB-A Dock (RAM-GDS-DOCK-V12-U1CPDU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It features an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-A female connector. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

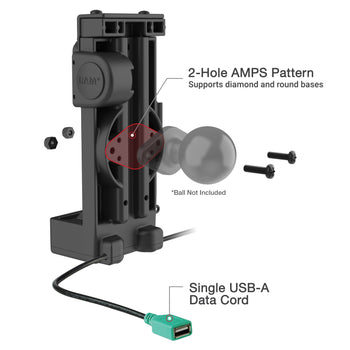

hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
USB Type-C
USB Type A for 1 Peripheral
input cable length
1 Meter
peripheral output
500mAh
Warranty
3 year warranty
Weight
0.282 kg
