RAM® Diamond Ball Base - A Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Diamond plate features industry-standard AMPS hole pattern and measures 2.43" x 1.31"
- Included A size 9/16" RAM® rubber ball allows for connection to any A size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

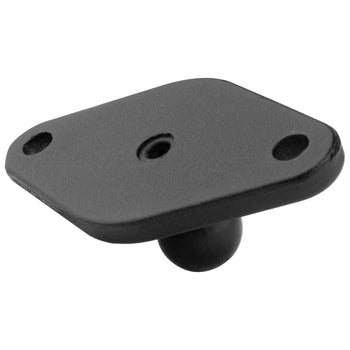

The RAM-A-238U consists of a 0.56" diameter rubber ball connected at right angles to a 2.43" x 1.31" diamond base. The base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
hole pattern
2-Hole AMPS 1.912"
ball size
A Size (9/16")
weight capacity
.5 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.031 kg
