RAM® 100x100mm VESA Plate with Ball - E Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
The RAM-E-246U consists of a 3.38" rubber ball, connected to a 4.75" square plate with 4x100mm holes and 4x75mm holes in each corner. This product includes a set of washers intended to reduce the hole sizes in the VESA plate.
Components
hardware included
(4) .312" x .187" Shoulder Washers

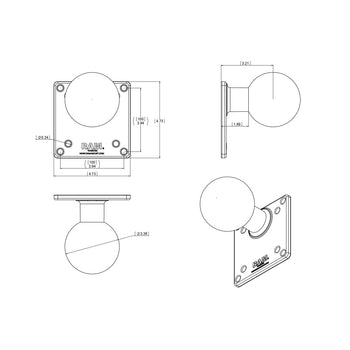

hole pattern
See Drawing
ball size
E Size (3.35")
weight capacity
Standard Use: 15 lbs
Heavy-Duty Use: 10 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.927 kg
