RAM® X-Grip® Large Phone Mount with RAM® Tough-Wedge™ Base - B Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Compatible with RAM® Tough-Wedge™ which fits in gap between vehicle seat and center console for ideal placement of your device. Ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

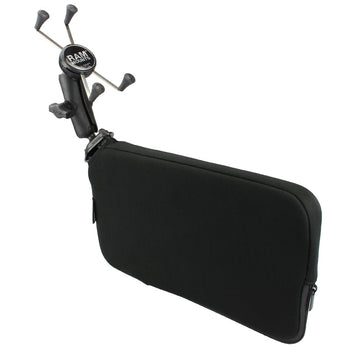

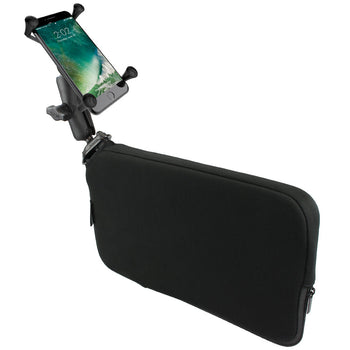

The RAP-B-407-UN10U consists of the Tough-Wedge vehicle seat wedge base, composite double socket arm, and X-Grip universal large phone holder. This mount fits conveniently in the gap between your vehicle's passenger seat and center console, creating a temporary but also very rugged mounting platform for your phone. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. With the turn of a knob you can set your phone to the perfect viewing and operating angle. The X-Grip is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
hardware included
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions

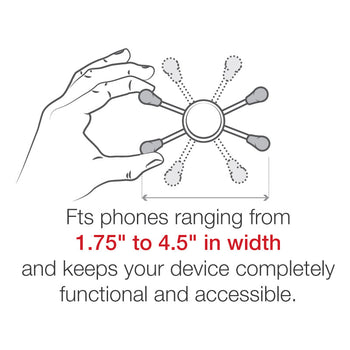

Width Range: 1.75" - 4.5"
Depth Range: .875" max
wedge dimensions
Length: 13.25"
Height: 8.25"
Thickness: 1"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
High strength composite
Stainless steel
packaging type
Poly Bag
Weight
0.841 kg
